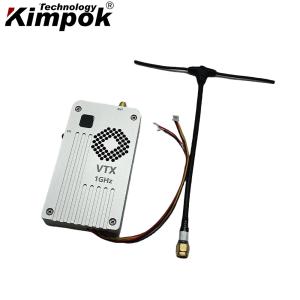

1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
Description:
The transmitter is beautifully made, made of special metal, but also equipped with high-speed fans, more conducive to heat dissipation, more suitable for long-term work.
The signal input uses a universal AV interface, which is easily compatible with all conventional AV interfaces such as cameras, VCDS, DVDS, etc.
It is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but can also be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (if required to transmit data can be customized).
VTX Specification:
| Product name | Analog video transmitter |
| Voltage | DC 24V |
| Current | 1.3A |
| Modulation | FM |
| Frequency | 1000Mhz |
| Channels | 8 channels |
| Frequency band | 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz |
| Transmit Power | 5watt |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMAfemale |
| Transmitter Weight | 104g |
| Dimensions | 98*55*18mm (without antenna) |
VRX Specification:
| Product | Analog video receiver |
| Voltage | DC 24V |
| Receiving sensitivity | -85dB |
| Modulation | FM |
| Frequency | 1000Mhz |
| Channels | 8 channels |
| Frequency band | 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz |
| Video Output | 1 Vp-p(FM) |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMAfemale |
| Transmitter Weight | 83g |
| Dimensions (L * W * H) | 75*45*20mm(antenna port not included) |
